PRODUCT · SMART CONTROL
EZ2C IR Controller — every remote, learned once.

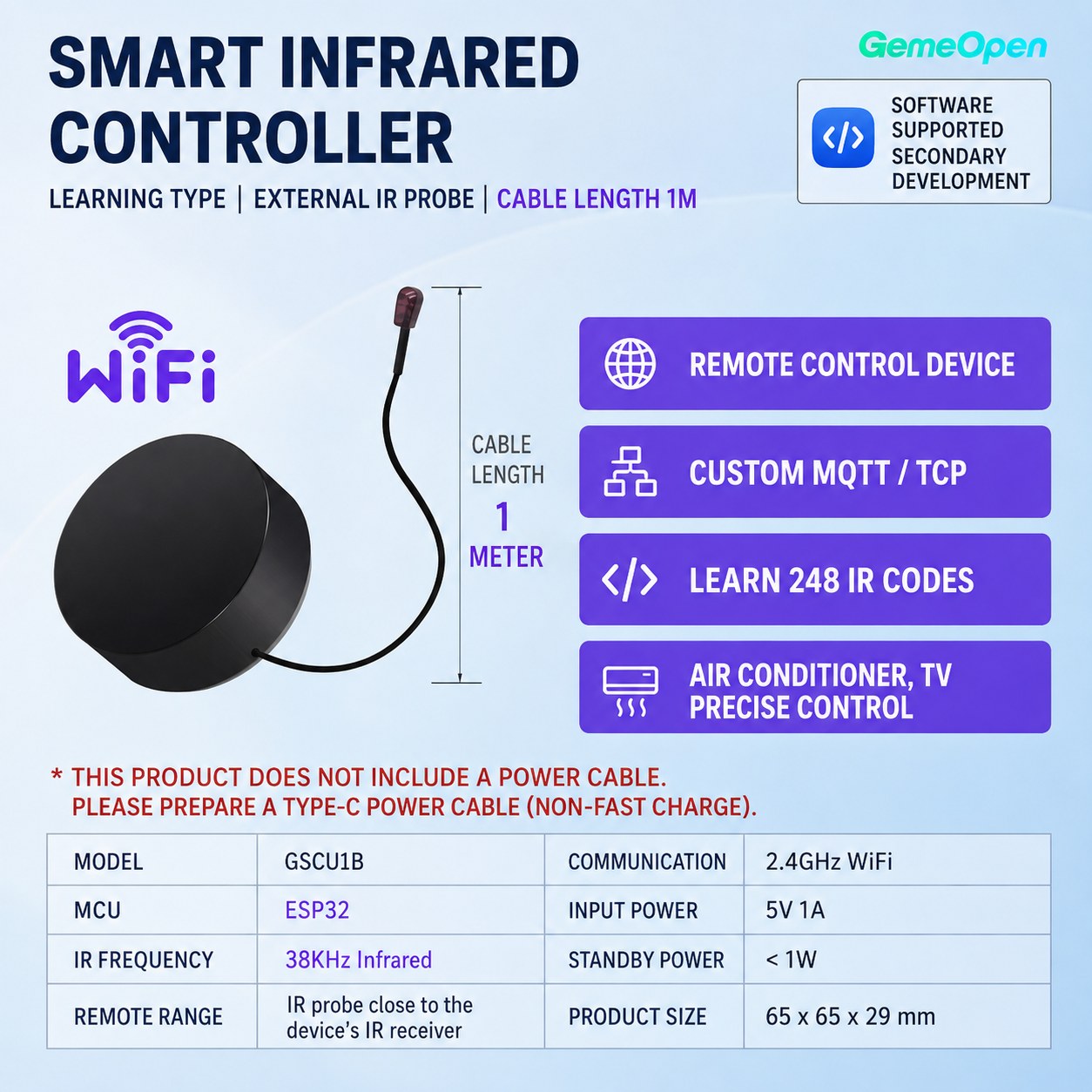

A learning Wi-Fi infrared controller: point the original remote at it, store up to 248 codes, then fire them from your app or platform over MQTT. The external IR probe on a 1-metre cable sits right at the appliance’s receiver for precise aircon and TV control.
Built for
1
Smart communities & hotels
Schedule and automate aircon and TV in rooms, clubhouses and common areas — driven from your own backend or app.
2
Shops & self-service spaces
Control displays and air-conditioning in retail units and laundromats from the same platform that runs your EZ2C terminals.
3
Built for developers
Open JSON over MQTT or TCP, pointable at your own broker — made for secondary development, with an iOS/Android app included.
Highlights
- Self-learning — copies the remotes you already own, no code database needed
- 248 code slots, enough for many appliances and states
- External IR probe on a 1 m cable — mounts right at the appliance’s receiver
- 2.4 GHz Wi-Fi (ESP32), MQTT and TCP with custom-broker support
- Open JSON message format for easy integration in any language
- USB Type-C 5 V 1 A, under 1 W standby · 65 × 65 × 29 mm
- iOS & Android app for setup, learning and testing
248 IR CODES
38 KHZ IR
EXTERNAL PROBE · 1 M
MQTT · TCP
2.4G WI-FI
USB-C
A good fit for: smart communities · hotels & serviced rooms · offices · retail & laundromats
